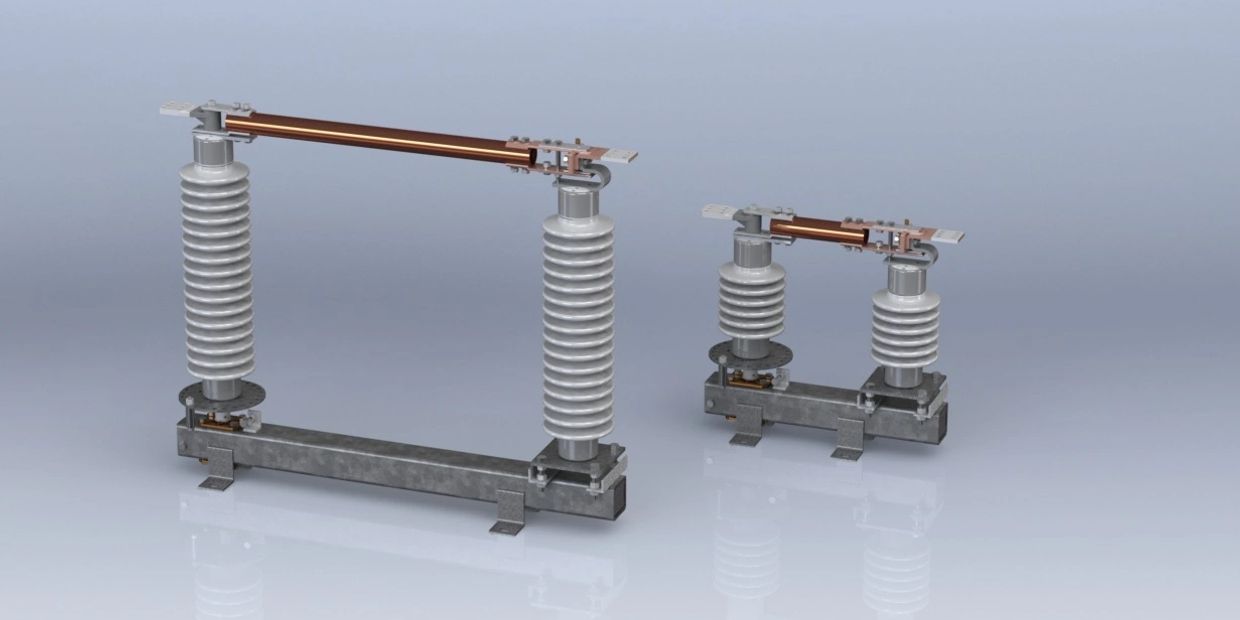

Side Break Parallel (SBP)

Side Break Parallel

  • Manufactured in copper
  • Requires minimum overhead clearance

Application: Substation & Transmission

  • Horizontal upright
  • Vertical
  • Underhung

Standard Features

  • 1/2" Stainless Steel arcing horns
  • Leaf type contact fingers with stainless steel backup springs
  • Silver-to-silver exposed contacts
  • Rigid tubular blades
  • Stainless steel live parts hardware
  • Galvanized steel square tube base
  • Stainless steel ball bearings

Operator Option

  • Swing handle
  • Worm gear
  • Motor operator

Accessories

  • Whip type horns
  • Single vacuum bottle interrupters
  • Ground switches

PASCOR Air Break Switch Technology

 PASCOR offers versatility and reliability in its entire line of group operated switches. Ideal for either substation or transmission applications, PASCOR switches are engineered to the highest standards to meet and often exceed all applicable ANSI and NEMA requirements. PASCOR customizes controls on each switch to suit each application

SBP Product Bulletin

SBP Product Bulletin (pdf)

Download
