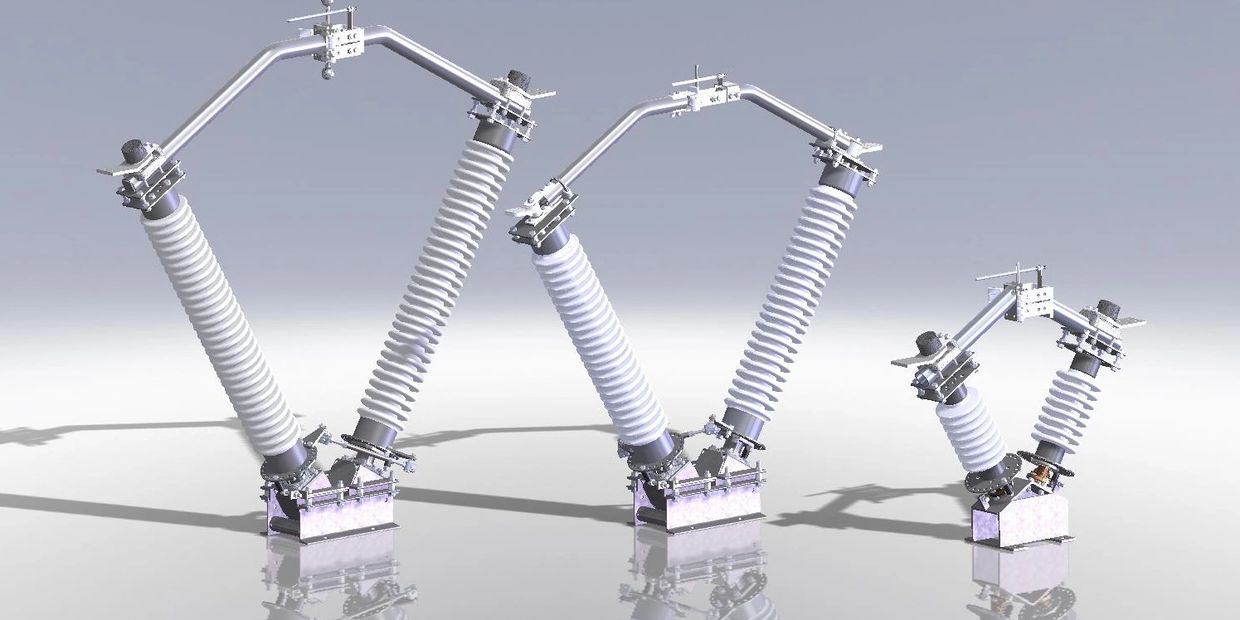

Center Break Slant (CBS)

Center Break Slant

  • Manufactured in either aluminum or copper
  • Requires minimum overhead clearance
  • Slanted insulators allow for minimum base mounting

Application: Substation & Transmission •

  • Horizontal upright
  • Vertical
  • Underhung
  • Phase over phase
  • Phase opposite phase

Standard Features

  • 1/2" Stainless Steel arcing horns
  • Brazed silver-to-silver contacts
  • Rigid tubular blades
  • Stainless steel live parts hardware
  • Stainless steel ball bearings 115kV and above
  • Stainless steel shaft in bronze sleeve bearing 69kV and below
  • Galvanized steel base

 Operator Option

  • Swing handle
  • Worm gear
  • Motor operator

Accessories

  • Whip type horns
  • Single vacuum bottle interrupters
  • Ground switches
  • Counterweight as required

Questions? Contact Us

PASCOR Air Break Switch Technology

 PASCOR offers versatility and reliability in its entire line of group operated switches. Ideal for either substation or transmission applications, PASCOR switches are engineered to the highest standards to meet and often exceed all applicable ANSI and NEMA requirements. PASCOR customizes controls on each switch to suit each application.

PASCOR Technology and CBS Application

    CBS Product Bulletin

    CBS Product Bulletin (pdf)

    Download
