HPL Vertical Hookstick

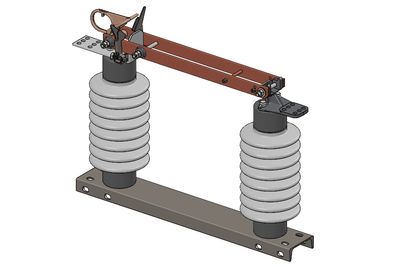

 The HPL switch is a two-insulator vertical break single-phase hook stick design. Single-phase operation is accomplished with the use of a hot-stick. Operation of the switch is achieved through a pry-out paddle from the high-pressure line (HPL) contact arrangement. Copper components are utilized throughout the design.


Design Features:

  • Ease of operation opening and closing
  • Hard-drawn, high conductivity copper live components
  • Large silicon bronze hook for ease of operation
  • Robust stainless steel latch to keep the blade in position
  • Mounting in vertical or underhung positions
  • Galvanized structural steel channel base
  • Stainless steel hardware for corrosion resistance
  • High-pressure current transfer joints in the blade hinge ensure trouble-free operation
  • Stainless steel contact springs
  • Silver-to-copper contacts on hinge and contact for current transfer
  • Silver-plated terminal pads with NEMA Standard hole pattern
  • 3 Position blade stops standard: 75, 90, and 105 degrees
  • Insulators: either porcelain or polymer
  • Introduction and type test data from ABB in 1973
  • Meets or exceeds all applicable ANSI and NEMA standards
  • ANSI 53 Degree C rise designs

PASCOR Air Break Switch Technology

 PASCOR offers versatility and reliability in its entire line of group operated switches. Ideal for either substation or transmission applications, PASCOR switches are engineered to the highest standards to meet and often exceed all applicable ANSI and NEMA requirements. PASCOR customizes controls on each switch to suit each application.

HPL Vertical Bulletin

Bulletin 6100 HPL 1200A (pdf)

Download

Bulletin 6200 HPL 2000A (pdf)

Download
